11 Create PDF Server

Fig. 11.1: Workflow: Create PDF Server

PDF HandShake has a feature to automate the PDF creation of any PostScript job. This is done by creating a new printer queue in HELIOS Admin, with the connection type Create PDF. This queue prints the PostScript job over TCP/IP to a dedicated Mac or Windows based server. This server platform is used to create the PDF file. After a PDF file is successfully created, the Mac or Windows server will return the PDF to the HELIOS printer queue (Fig. 11.1).

Note:

Create PDF Server utilizes Adobe Acrobat Distiller, which must be purchased separately. It is important to comply with the licensing terms of Adobe Acrobat. Specific terms related to using Acrobat on a server can be found in the Acrobat license file. The purpose of Create PDF Server is to use Acrobat Distiller more efficiently, reduce administrative and training costs, and to ensure consistent, reliable PDF job production.

Alternatively, you may use Ghostscript to convert the PostScript print job into a PDF file. Ghostscript is license-independent and is available for major platforms. However, it can only generate low-end PDF documents.

Ghostscript binary

Ghostscript (“gs” binary) is available in various distributions, free of charge. HELIOS supports all current Ghostscript 8.x and 9.x versions. The Ghostscript executable (“gs” on UNIX, “gswin32c.exe” on Windows) must be installed in some standard directory, or the ghostscript preference must be set to executable path.

The benefits of Create PDF Server are:

Server-based automatic PDF creation from any UNIX, Mac or Windows client by printing to a HELIOS “Create PDF” print queue
Create PDF Server works without any local configuration of the Mac/Windows server, the Distiller settings are attached to the HELIOS printer queue
PDF creation requires a lot of computing which will be off-loaded from the host to a dedicated server, e.g. a Mac with a fast network connection
Office PDFs: Ghostscript PDF generation support

Note:: Currently, there is no speed up for the Adobe Distiller or Ghostscript from Dual-CPU Macs.

There is no temporary PostScript file stored on the dedicated server
There is only the spooled job stored on the HELIOS server. Font or OPI resolving is done on-the-fly and does not use additional disk space on the HELIOS server.
Error Messages will be saved to the HELIOS printer accounting log file and sent back to the user by e-mail
The created PDF document will be attached to the hold queue, similar to the HELIOS PrintPreview application
The created PDF document can be saved to any HELIOS volume or into a subfolder which can be created for each user name
Job distribution to the next available Create PDF Server – HELIOS supports balance queues which allow a cluster of “dedicated” servers which are used to distill many print jobs in parallel
Distiller security settings can be specified individually for each queue with HELIOS Admin
No shared folder/volume needed; Create PDF Server behaves like a network printer
Job-pipelining via multiple queues allows the creation of PDF files with different settings, e.g. one input job produces web, press and archive optimized PDF files
Create PDF Server fail safety; when multiple Create PDF Servers are used, automatic load balancing (cluster) ensures availability in case one server node should fail

In 11.2 “Setting up a “Create PDF” printer queue with HELIOS Admin”, new features within HELIOS Admin which are part of Create PDF Server are presented and explained. However, other features which are already described in the corresponding chapter in the HELIOS Base manual are merely referenced.

11.1 Installation

11.1.1 Prerequisites

Mac OS 9

A dedicated Power Mac running Mac OS 9, with a working TCP/IP connection and at least 64 MB RAM
Acrobat 4.0.5 (Acrobat 4.0 will not work!), Acrobat 5

Mac OS X

A Mac (Intel or PPC) running Mac OS X 10.3.5 or later, with a working TCP/IP connection
Acrobat 6/7/8/9/X

Windows

A PC running Windows XP or Windows 2003 Server, with a working TCP/IP connection
Acrobat 4.0.5/5/6/7/8/9/X

All platforms

A host running PDF HandShake and either EtherShare, PCShare or WebShare

In order to ensure troublefree server operation it is most important that the “dedicated” server is not employed with tasks other than running the Create PDF Server process.

Ghostscript

During the installation of the HELIOS software modules, “createpdf” is created in the “HELIOSDIR/sbin” directory. It is started everytime a print job is send to port 2018 (see “TCP ports used by HELIOS” in the HELIOS Base manual).

11.1.2 Server memory requirements

The dedicated server that hosts Create PDF Server needs at least 64 MB of RAM. The performance of PDF creation with Create PDF Server depends on the size of the PostScript print job in relation to the available memory assigned to Create PDF Processor should slightly exceed the size of the largest print job which will be converted.

11.1.3 Mac server installation

Mac OS X Acrobat 8/9/X

: Double-click the “Acrobat 8.dmg” disk image in the “HELIOS Applications” volume (MacOS > PDF Tools > Create PDF Server).

: Copy the Create PDF Server application into a local workstation folder, e.g. “/Applications”.

Starting Create PDF Server for the first time, you will be asked where Acrobat Distiller is installed.

: Select “Acrobat Distiller.app”.

For automatic startup of the Create PDF Server application you can drag the “Create PDF Server” program icon into System Preferences > Accounts > Login Items).

Mac OS X Acrobat 7

: Double-click the “Acrobat 7.dmg” disk image in the “HELIOS Applications” volume (MacOS > PDF Tools > Create PDF Server).

: Copy the Create PDF Server and Create PDF Processor applications from the “Create PDF Server” volume into a local workstation folder, e.g. “/Applications”.

Starting Create PDF Server for the first time, you will be asked where Acrobat 7 Distiller is installed.

: Select “Acrobat Distiller.app”.

For automatic startup of the Create PDF Server application you can drag the “Create PDF Server” program icon into System Preferences > Accounts > Login Items).

Mac OS X Acrobat 6

: Copy the applications Create PDF Server and Create PDF Processor from the “HELIOS Applications” volume (MacOS > PDF Tools > Create PDF Server > Acobat 6) into a local workstation folder, e.g. “/Applications”.

Starting Create PDF Server for the first time, you will be asked where Acrobat 6 Distiller is installed.

: Select “Acrobat Distiller.app”.

For automatic startup of the Create PDF Server application you can drag the “Create PDF Server” program icon into System Preferences > Accounts > Login Items).

Mac OS 9 (Acrobat 4-5)

: Copy the applications Create PDF Server and Create PDF Processor from the “HELIOS Applications” volume (MacOS > PDF Tools > Create PDF Server > Acrobat 4-5) into the “Distiller” subfolder of the “Acrobat” application folder.

If Create PDF Server and Create PDF Processor are not located in the “Distiller” directory the “Create PDF Server” queue will not work. However, it is possible to create an alias of the Create PDF Server application which can be stored in the Mac “Startup Items” folder, to allow for an automatic startup of the Create PDF Server application.

Using the “Create PDF” function requires Create PDF Server to be up and running on the dedicated host. After Create PDF Server has been started, the “HELIOS Create PDF Server” window appears on the screen indicating that it is idle and ready to receive print jobs.

Using a different port number

To use Create PDF Server with a port number other than the default (2005), you must assign the port number to the “Create PDF” printer queue (see 11.2.1 “Create PDF connection”). In addition, you must set the port number in the Create PDF Server application to the same value.

For the Acrobat 4-5, 6 and 7 versions, the port number is set in the “PREF” (ID=128, entry TCPPort) resource of the Create PDF Processor module
For the Acrobat 8/9/X versions, the port number is set in the “Contents/Resources/prefs.plist” file inside the “Create PDF Server.app” bundle

11.1.4 Windows server installation

For the installation of Create PDF Server on a Windows PC take the following steps:

: Open “HELIOS_APPS” and copy the “Create PDF Server” folder from Windows\PDF Tools to the local disk.

Create PDF Server is comprised of the files:

Create PDF Server.exe
The main application
Create PDF Processor.exe
The program that is (automatically) started for each job
InstallPDFService.bat/RemovePDFService.bat
Batch files to install or remove Create PDF Server as a Windows service
AdoptSettings.exe
Utility program to make the Font Locations... settings available to the Windows service
libdl_s.dll/libhelios_s.dll/libsched_s.dll/libsfio_s.dll/msvcrt100.dll
Dynamic libraries needed by the Create PDF Server applications
README.txt

There are two ways to make use of Create PDF Server (described below in more detail):

Installation
Use in a console window

Installation

Advantages:

+ Runs as background application
+ No user login is needed
+ Error reporting in “Windows Event Log” file

: Double-click “InstallPDFService”, which installs “HELIOS Create PDF Server” as a Windows Service. This means that it is started each time the Windows PC is booted. Calling this install script will also start the server immediately.

Verification

Verification of the installation:

: Start the Windows “cmd” program and change to the “Create PDF Server” directory. Type "Create PDF Server.exe" -s and press RETURN (-s = “status”).

Your Create PDF Server service installation was successful if the line Service is installed. appears in the Windows “cmd” program command line.

Alternatively, you can do the following:

: Open “Start > Control Panel > Administrative Tools > Services”. Then double-click the “Create PDF Server” entry.

Removal

Removal of the service:

: In the Create PDF Server folder double-click “RemovePDFService.bat”.

Use in a console window

Advantages:

+ Job processing can be monitored.

: To start Create PDF Server manually (in a console window), double-click the Create PDF Server icon.

: To stop Create PDF Server use “CTRL-Pause” (Break key functionality) or close the console window.

Important:: Never run Create PDF Server simultaneously as a service and in a console window!

Error logging

In the event of an error, respective messages are written to the “Windows Event Log” and can be displayed with the Windows Event Viewer.

Note:: The following information applies only to Create PDF Server for Windows installations, using Acrobat 5 or newer.

Adopt settings

If Create PDF Server is used as a service, you need to run the “AdoptSettings.exe” program each time you change the Font Locations... settings within Acrobat Distiller. This is because Acrobat 5 (or newer) stores its settings in user-dependent trees of the Windows Registry. In order to make these settings available to the service, “AdoptSettings.exe” copies the settings to a global node.

Note:: When running Create PDF Server on Windows as a system service, jobs may get stuck if Adobe Acrobat tries to display a dialog. System services on Windows run as user “SYSTEM”, so Acrobat's dialogs about registration, activation, demo expire time or updates are not shown to the user that is currently logged-in. To make dialogs being shown to the currently logged-in user, open the service's properties (Computer Management > Services > HELIOS Create PDF Server), select the tab Log on, and check Allow service to interact with desktop. To avoid these dialogs and stuck jobs, you should activate Acrobat and disable registration and automatic updates.

11.2 Setting up a “Create PDF” printer queue with HELIOS Admin

Note:: Creating or editing printer queues with HELIOS Admin, which is essential for the following, is described in detail in the HELIOS Base manual. In this chapter, the focus is on the “Create PDF” printer queue only.

11.2.1 Create PDF connection

: In the HELIOS Admin Printers tab select File > New and specify a new printer according to the instructions given in the Base manual. Select Create PDF from the Connection pop-up menu, so the Interface tab comes into the foreground (Fig. 11.2).

<code>Create PDF</code> printer connection

Fig. 11.2: Create PDF printer connection

: Enter the IP address of the host where Create PDF Server and Acrobat Distiller are installed in the Host Name field, and specify the port number in the Port field.

Note:: The port number allows you to specify whether the PDF is generated via Create PDF Server (2005) or Ghostscript (2018).

Instead of the IP address you may also specify the server host name on the network. However, this requires a configured and working DNS server on the network.

The directory path to the location where the processed PDF print jobs are saved must be specified in the Directory field. You may also use the Browse... button to select the spool directory. If the option Create Folder for Each User is active, a subfolder for each print job “owner” is created in the directory path where the print jobs are stored. The user name is the Owner Name as stated in the %% For: (name) string inside the PostScript job.

Note:: If the user name is not known to the HELIOS server, the PDF will be stored inside a folder “nobody”.

If the Send Notification checkbox is activated, the “Create PDF” interface reports events to all listening services.

Note:: Note that with the option Send Notification activated, layouts are generated if the target volume is configured to create layouts.

If desired, you can enter a Name Prefix and a Notify Program. The prefix serves to identify the files that are coming from this specific printer queue (in case you have several “Create PDF” printer queues which print to the same destination). The Notify Program option lets you enter a path that leads to a specific program. Again, you may also use the Browse... button to select a notify program. This program will be started automatically after printing has been finished successfully. See distillnotifyprog in 14.3.1 ““pdfif” preference keys”.

Select PDF Preflight Profile

If a Notify Program was specified, the Select PDF Preflight Profile option allows you to specify a profile for the PDF preflight functionality (see 6.8 “PDF preflighting with “pdfToolbox””). If no Notify Program was specified, no preflighting is done at all.

If a queue has a PDF profile assigned, you can display the contents of that file in a text window, and root and members of the “SysAdm” or “QueueAdm” group can edit the file:

: Click the Edit PDF Profile... button.

Select Distiller Settings

To set up the preferred Distiller settings for the “Create PDF” printer queue, do the following:

: Start Acrobat Distiller and select a pre-defined PDF job option from the Default Settings pop-up menu in the Adobe PDF Settings section.

: Open Settings > Edit Adobe PDF Settings.... Modify the settings according to your needs (see A “Create PDF files using Acrobat Distiller”) and save your changes – under a new name – to the Distiller “Settings” folder by clicking Save as.... Optionally, the job options file can be saved to the HELIOS “Settings” volume, in the “Distiller Settings” folder. Then highlight your “Create PDF” printer queue in the HELIOS Admin Printers tab and select Settings from the Printer menu. In the Interface tab activate the Select Distiller Settings checkbox and enter the path to the job options file in the text field or click Browse... to search for it. Confirm the selection with the OK button.

Now your job option settings have been saved to the “Create PDF” printer queue on the host and are stored in the “SETTINGS” file of the spool directory.

Edit Distiller Settings

In the Interface tab of the “Create PDF” printer queue you can display the contents of the Distiller settings file in a text window. “root” and members of the “SysAdm” or “QueueAdm” group can edit it:

: Click the Edit Distiller Settings... button.

Note:: It is not recommended to edit the “SETTINGS” file manually because this can introduce syntax errors.

Edit Distiller Security

You may want to protect your created PDF documents against unauthorized use, e.g. from being opened, printed, or changed (i.e. edited).

The different types of protection can be set in any Acrobat Distiller:

: Start Acrobat Distiller and go to Settings > Security.... In the “Security” window (Fig. 11.3) specify the required options, and finally confirm your entries with the OK button.

Fig. 11.3: Acrobat Distiller “Security” dialog

Likewise, Create PDF Server can tag PDF documents, during the generation, with security settings which restrict the opening, printing, changing (i.e. editing) of a PDF document.

Create PDF Server stores the security information in “HELIOSDIR/var/spool/qmeta/<printer>/SECURITY”. To use security settings with Create PDF Server, proceed as follows:

: Start HELIOS Admin and select the desired “Create PDF” printer queue. Open the security settings window (Fig. 11.4) of the respective “Create PDF” printer queue by clicking the Edit Distiller Security... button in the Interface tab of the printer queue configuration window.

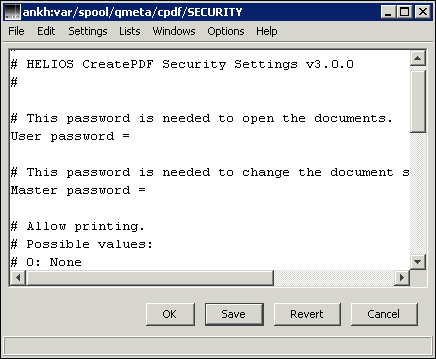

Fig. 11.4: Select “SECURITY” file

: Apply your changes in the “SECURITY” window, then close the window and confirm your changes.

Create PDF Server will produce PDF files which behave according to the specifications in the “SECURITY” file.

Note:: If no security settings are specified in the “SECURITY” file, Create PDF Server does not put up any restrictions. However, if security settings are defined in the used Distiller they will be applied! So make it a habit to remove all PDF security related restrictions in the Distiller settings, and apply such restrictions via Create PDF Server only.

11.2.2 Composite PDF without color space transforms

When printing composite PostScript to a “Create PDF” queue, if color matching is turned off (i.e. the Default Printer Profile in the HELIOS Admin tab ICC is set to None), then no color matching will take place, and all objects will be sent in their original color space to be Distilled. However, color space conversion may still occur if the Distiller “Adobe PDF Settings” are set to do so.

11.3 Print to the “Create PDF” printer queue

Printing to a “Create PDF” printer queue is almost the same as printing to any other HELIOS printer queue. The only difference is that here a Mac or Windows host with Acrobat Distiller acts as a “Create PDF” printer. So any (authorized) user on the network can benefit from the functionality of Create PDF Server.

: In the application from which you want to print, open the print menu and choose the “Create PDF” printer queue. There, specify the required settings (e.g. paper size and PostScript options) and start the job.

Create PDF Server then starts processing the jobs – one at a time – according to their order in the spool queue. You can monitor the process and the state of each print job in the “Create PDF Server” window.

Fig. 11.5: “Create PDF Server” window

If there should arise a problem during the print processing, a warning message appears in the “Create PDF Server” window specifying the cause of the problem (Fig. 11.5).

While idling, the window states with a “Welcome” message that the server is ready to receive print jobs. When a print job is being processed the window displays information about where the job comes from and via which port as well as the total print job size and the transfer rate. After Create PDF Server has completed the job and the PDF file has been created, the window shows the size of the PDF file and the transfer rate (Fig. 11.6).

Fig. 11.6: “Create PDF Server” window

After that, Create PDF Server is idle again and ready to accept new print jobs.

Obtaining the PDF file

There are two ways to obtain the printed PDF file: from the “hold” queue of HELIOS Admin, provided that the “Create PDF” printer queue is configured to pass printed jobs to the “hold” queue.

Fig. 11.7: “Create PDF” print job on the “hold” queue

: Double-click the “hold” queue in the Printers list to access the file in the job window (Fig. 11.7). The PDF icon in front of the file name indicates that PDF generation has been successful. Double-clicking a job’s PDF icon in the “hold” queue automatically starts your Acrobat application. Also, you can select the job in the “hold” queue window and go to Save as... in the File menu of HELIOS Admin.

You can also obtain the created PDF file via the HELIOS volume (which should be described by the path in the Directory entry) and get access to the file there or, if you checked Create Folder for Each User, in the directory’s subfolder.

Note:: Please note that the PDF file still remains in the HELIOS directory even if the print job is erased from the “hold” queue. This is because the printer queue only references the PDF file.

11.3.1 Balancing “Create PDF” print jobs (Balance queue)

If you want to enhance the performance you may group two or more “Create PDF” queues in one balance queue. The user then prints to this “balance” queue where the print server distributes the job to the next “Create PDF” queue which is ready to accept jobs.

Because the PDF job options and security settings are sent along with the print job, the print job can be sent to any of the Create PDF Server hosts.

For comprehensive and more detailed information about how to set up a balance queue, see the respective chapters in the HELIOS Base manual.

: Activate the Printers list and choose New from the File menu. HELIOS Admin then opens a new printer data window, which – to some extent – is already filled out with default values from the “Server Settings” window.

: Fill out the Printer Name, select a PPD, and if desired, assign “hold” and “error” queues. In the Connection pop-up menu select Balance Group. From the Printers list drag the “Create PDF” queues you want to group for load balancing, and drop them into the Printer field (Fig. 11.8). To finish, enter PAP, TCP, and SMB names in the Mac and Windows tabs, and click Save.

Fig. 11.8: Grouping “Create PDF” queues for balance queue

Important:: It is most important that the “Create PDF” printer queues which form the “Balance Group” have been assigned the same Distiller and Security settings (see Select Distiller Settings and Edit Distiller Security). Also select the same PPD for the “Balance Queue” which is already assigned to the “Create PDF” printer queues in the Printers field. Otherwise the printing results may not be predictable.

11.4 Possible problems

Acrobat Distiller sometimes produces strange error messages if it is running out of memory. Sometimes there is an error message no PDF file created or a PostScript error message. Please verify the failed PostScript job by dropping it on the Distiller application icon, maintaining the same Distiller Settings and Memory allocation.

If no PDF file is created the reasons could be:

PostScript errors in the print job
Incomplete Acrobat Distiller installation
Missing fonts

The status in the “Printer” window issues “Waiting for printer…”. The possible cause is:

The host or Create PDF Server is not up and running.
